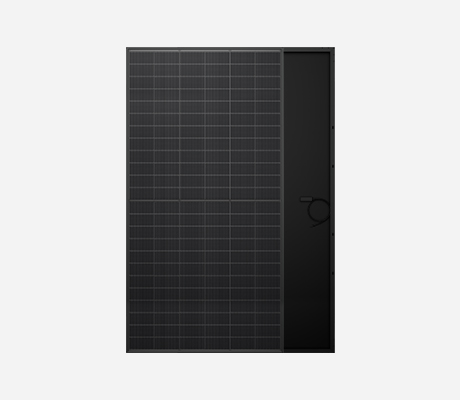

Sunpal Topcon Eu Stock Full Black Solar Panels 540W 560W 585W Monocrystalline Solar Panels

Detail

Key attributes

Industry-specific attributes

Cell size
182mmx182mm


Type
Half Cell, All Black, HJT, N-TYPE, TOPCON


Panel Efficiency
22.85%


Warranty
25YEARS


Other attributes

Place of Origin
Jiangsu, China


Panel Dimensions
2279* 1134*35mm


Brand Name
Sunpal


Model Number
All Black HiMAX5N TOPCON 410-585W


Keyword
N-type TOPCon Solar Module


Front Glass
3.2mm coated tempered glass


Frame
Silver / Black, anodized aluminium alloy


Weight
27.5kg


Packaging
31pcs/box, 155pcs/20'GP, 620pcs/40'HQ


Maximun System Voltage
1500 VDC (IEC)


Junction Box
Ip68 rated (3 bypass diodes)


Output Cables
4mm² 300mm(+)/300mm(-),Length can be customized


Connector
MC4 Compatible


M echanical load test
5400Pa


Packaging and delivery

Packaging Details
In well-protected Caron with pallet


Port
Shanghai


Supply Ability

Supply Ability
200000000 Watt/Watts per Month

Lead time

Quantity (watts)1 - 120000120001 - 400000> 400000
Lead time (days)1020To be negotiated
HiMAX5N TOPCON 555-585W
Maximum power (Pmax/W)
555
560
565
570
575
580
585
Open Circuit Voltage (Voc/V)
50.89
51.03
51.17
51.30
51.44
51.67
51.90
Short Circuit Current (Isc/A)
13.98
14.05
14.12
14.19
14.26
14.33
14.40
Voltage at Maximum power (Vmpp/V)
42.33
42.49
42.64
42.79
42.94
43.09
43.24
Current at Maximum Power (Imp/A)
13.11
13.18
13.25
13.32
13.39
13.46
13.53
Module Efficiency(%)
21.48
21.67
21.86
22.06
22.25
22.44
22.64
Power Output Tolerance (W)
0/+5W
Temperature Coefficient of Isc
+0.046%°C
Temperature Coefficient of Voc
-0.25%°C
Temperature Coefficient of Pmax
-0.30%°C


HiMAX5N TOPCON 410-440W
Power Range: 410-440W
No. of Cells: 108 cells
Dimension: 1722 × 1134 × 30mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs


HiMAX5N TOPCON 555-585W
Power Range: 555-585W
No. of Cells: 144 cells
Dimension: 2279 × 1134 × 35mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
