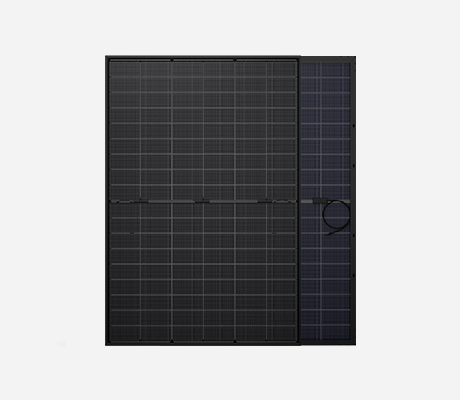

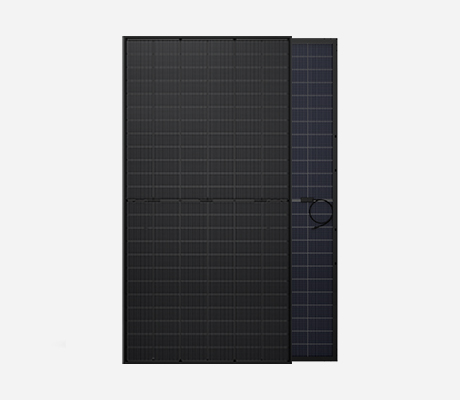

Sunpal New Arrival All Black Photovoltaic 530W 540W 550W Double Glass Monocrystalline Bifacial Solar

Detail

Key attributes

Industry-specific attributes

Cell size

182mmx182mm

Type

PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON, BIPV

Panel Efficiency

22.64%

Warranty

25YEARS

Other attributes

Place of Origin

Jiangsu, China

Panel Dimensions

2279 x 1134 x 30mm

Brand Name

Sunpal

Model Number

All Black BiMAX5N TOPCON 410-585W

Keyword

Double-glass Half Cell Mono Solar Panel

Solar Cells

N-type Mono

Weight

38.7kg

F Side Glass

2.0mm anti-reflective solar glass

B Side Glass

2.0mm solar glass

Junction Box

IP68 Rated, 3 Diodes

Cable

MC Compatible

Frame

Silver / Black, anodized aluminium alloy

Connector

MC Compatible

Mechanical load test

5400Pa

Packaging and delivery

Packaging Details

carton with pallet

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 100000	> 100000
Lead time (days)	7	To be negotiated

BiMAX5N TOPCON 410-440W
Maximum power (Pmax/W)	410	415	420	425	430	435	440
Open Circuit Voltage (Voc/V)	38.10	38.25	38.49	38.73	38.96	39.20	39.44
Short Circuit Current (Isc/A)	13.85	13.92	13.99	14.06	14.13	14.20	14.27
Voltage at Maximum power (Vmpp/V)	31.20	31.42	31.63	31.84	32.04	32.25	32.45
Current at Maximum Power (Imp/A)	13.14	13.21	13.28	13.35	13.42	13.49	13.56
Module Efficiency(%)	21.00	21.25	21.51	21.76	22.02	22.28	22.53
Power Output Tolerance (W)	0/+5W
Temperature Coefficient of Isc	+0.045%°C
Temperature Coefficient of Voc	-0.25%°C
Temperature Coefficient of Pmax	-0.29%°C

BiMAX5N TOPCON 555-5850W
Maximum power (Pmax/W)	555	560	565	570	575	580	585
Open Circuit Voltage (Voc/V)	51.00	51.14	51.28	51.41	51.55	51.79	52.03
Short Circuit Current (Isc/A)	13.94	14.01	14.08	14.15	14.22	14.29	14.36
Voltage at Maximum power (Vmpp/V)	41.95	42.11	42.26	42.41	42.56	42.71	42.86
Current at Maximum Power (Imp/A)	13.23	13.30	13.37	13.44	13.51	13.58	13.65
Module Efficiency(%)	21.48	21.67	21.86	22.06	22.25	22.44	22.64
Power Output Tolerance (W)	0/+5W
Temperature Coefficient of Isc	+0.045%°C
Temperature Coefficient of Voc	-0.25%°C
Temperature Coefficient of Pmax	-0.29%°C
