China Solar Panel Price 350 400 450 Watt Household Rechargeable Panneau Solaire Power

Detail

Key attributes

Industry-specific attributes

Cell size

182mmx182mm

Type

PERC, Half Cell, Bifacial, Double-glass

Panel Efficiency

21.48%

Warranty

30 years

Other attributes

Place of Origin

China

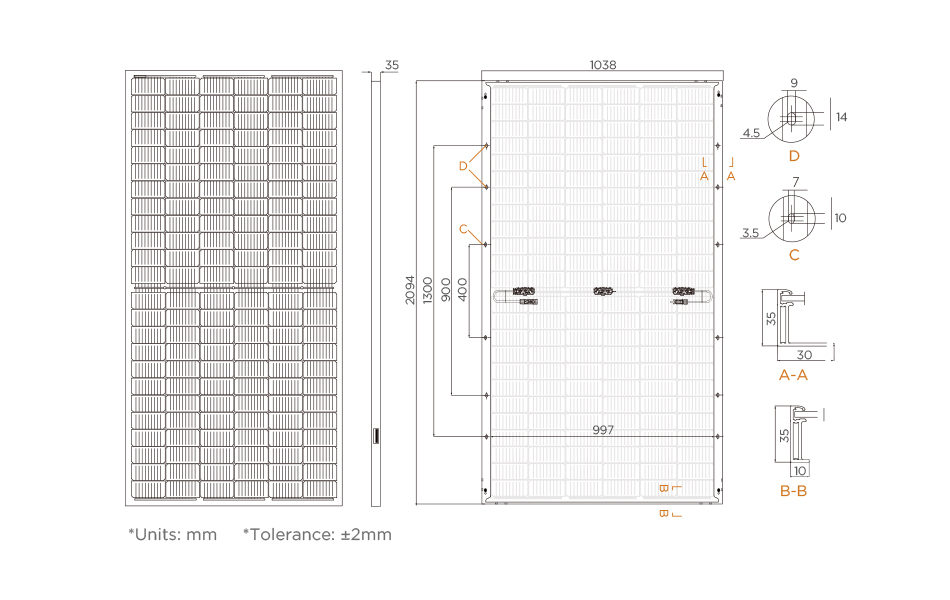

Panel Dimensions

2094*1038*35mm

Brand Name

Sunpal

Model Number

SP470MB-72HG/HT

Brand

Sunpal Solar

Series

HiMAX BiMAX

Solar Cells

Mono/Poly

OEM Order

Provide Custom Products

Maximum system Voltage

1500V DC

Operate Temperature

40 ~+85

Class

2.0 mm heat strengthened glass

Backsheet

White/Black

Frame

Silver / Black Anodized Aluminium Alloy

Junction Box

IP 68 rated

Packaging and delivery

Packaging Details

carton with pallet

Port

shanghai port

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 100000	> 100000
Lead time (days)	7	To be negotiated

Cell Orientation	144（6*24）
Glass	Double/Single glass
Weight	26.5kg±3%
Power Output Tolerance	0~+5W
Dimension	Anodized aluminum alloy
Max. System Voltage	DC1500V(IEC/UL)

Electrical Characteristics:

Model Number	SP445MB-72HG/HT		SP450MB-72HG/HT		SP455MB-72HG/HT
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	445	336	450	340	455	344
Open Circuit Voltage (Voc/V)	49.4	46.6	49.6	46.8	49.8	47
Short Circuit Current (Isc/A)	11.46	9.23	11.53	9.29	11.6	9.35
Voltage at Maximum Power (Vmp/V)	40.8	38.5	41	38.7	41.2	38.9
Current at Maximum Power (Imp/A)	10.91	8.73	10.98	8.79	11.05	8.85
Module Efficiency(%)	20.48		20.71		21.94
Temperature Coefficient of Isc	+0.048%/°C
Temperature Coefficient of Voc	-0.27%/°C
Temperature Coefficient of Pmax	-0.350%/°C

Model Number	SP460MB-72HG/HT		SP465MB-72HG/HT		SP470MB-72HG/HT
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	460	348	465	352	470	356
Open Circuit Voltage (Voc/V)	50	47.2	50.2	47.4	50.4	47.6
Short Circuit Current (Isc/A)	11.67	9.41	11.74	9.47	11.81	9.53
Voltage at Maximum Power (Vmp/V)	41.4	39.1	41.6	39.3	41.8	39.5
Current at Maximum Power (Imp/A)	11.12	8.91	11.18	8.96	11.25	9.02
Module Efficiency(%)	21.17		21.4		21.63
Temperature Coefficient of Isc	+0.048%/°C
Temperature Coefficient of Voc	-0.27%/°C
Temperature Coefficient of Pmax	-0.350%/°C
