30 Years Warranty Monocrystalline 530w 540w 550w 500 540 Watt Solar Panel Module

Detail

Key attributes

Industry-specific attributes

Cell size

182mmx182mm

Type

PERC, Half Cell

Panel Efficiency

21.67

Warranty

25Years

Other attributes

Place of Origin

Jiangsu, China

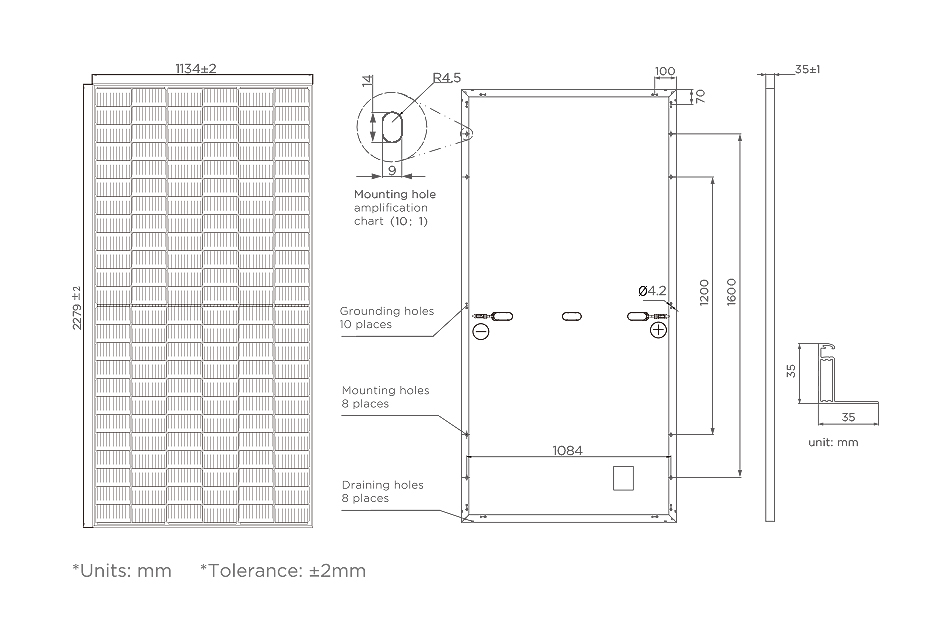

Panel Dimensions

2279*1134*35mm

Brand Name

Sunpal

Model Number

SP560M-72H

Cell Type

Mono PERC Half Cell

Packing

620pcs per 40'ft Container

Material

Monocrystalline Silicon Solar Cells

Type

Half Cell Solar Panel

Frame

Anodized Aluminium Alloy

Application

Commercia

Backsheet

White

Keyword

Monocrystalin Solar Panel

Junction Box

IP 68 rated

OEM Order

Provide Custom Products

Packaging and delivery

Packaging Details

carton with pallet

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 100000	> 100000
Lead time (days)	7	To be negotiated

Electrical Characteristics:

Cell Orientation	144（6*24）
Glass	Single glass
Weight	28 kg±3%
Power Output Tolerance	0~+5W
Dimension	22279×1134×35mm
Packaging	620pcs per 40'GP

Model Number	SP535M-72H		SP540M-72H		SP545M-72H
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	535	398	540	402	545	406
Open Circuit Voltage (Voc/V)	49.34	46.57	49.44	46.67	49.54	46.77
Short Circuit Current (Isc/A)	13.79	11.14	13.86	11.2	13.93	11.26
Voltage at Maximum Power (Vmp/V)	40.63	37.91	40.72	38.08	40.81	38.25
Current at Maximum Power (Imp/A)	13.17	10.5	13.27	10.56	13.36	10.62
Module Efficiency(%)	20.71		20.9		21.09
Temperature Coefficient of Isc	+0.04%/°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Pmax	-0.34%/°C

Model Number	SP550M-72H		SP555M-72H		SP560M-72H
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	550	410	555	414	560	418
Open Circuit Voltage (Voc/V)	49.64	46.87	49.74	46.97	49.84	47.07
Short Circuit Current (Isc/A)	14	11.32	14.07	11.38	14.14	11.44
Voltage at Maximum Power (Vmp/V)	40.9	38.42	40.99	38.59	41.08	38.76
Current at Maximum Power (Imp/A)	13.45	10.68	13.54	10.73	13.64	10.79
Module Efficiency(%)	21.29		21.48		21.67
Temperature Coefficient of Isc	+0.04%/°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Pmax	-0.34%/°C
