Sunpal Competitive Price All Black HJT Solar Panels 430W 440W 445W 450W PV Panels Module France

Detail

Key attributes

Industry-specific attributes

Cell size
182mmx182mm


Type
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, BIPV


Panel Efficiency
26%


Warranty
25YEARS


Other attributes

Place of Origin
Jiangsu, China


Panel Dimensions
1722 x 1134 x 30mm


Brand Name
Sunpal


Model Number
HiMAX5N HJT 430-450W


Keyword
N-type HJT Solar Module


Maximun System Voltage
1500 VDC (IEC)


Packaging
31pcs/box, 186pcs/20'GP, 806pcs/40'HQ


F Side Glass
2.0mm anti-reflective solar glass


B Side Glass
2.0mm solar glass


Junction Box
IP68 Rated, 3 Diodes


Cable
MC Compatible


Frame
Silver / Black, anodized aluminium alloy


Connector
MC Compatible


M echanical load test
5400Pa


Packaging and delivery

Packaging Details
carton with pallet


Supply Ability

Supply Ability
1000 Piece/Pieces per Day

Lead time

Quantity (watts)1 - 100000> 100000
Lead time (days)7To be negotiated

HJT 2.0 Technology
Combining gettering process and single-side μc-Si technology to ensure higher cell effciency and higher module power.
Maximum Power (Pmax/W)
430
435
440
445
450
Maximum Power Voltage (Vmpp/V)
34.60
34.86
35.12
35.38
35.63
Maximum Power Current (Impp/A)
12.43
12.48
12.53
12.58
12.63
Open Circuit Voltage (Voc/V)
41.37
41.64
41.91
42.18
42.44
Short Circuit Current (Isc/A)
12.95
13.00
13.05
13.10
13.15
Module Efficiency (%)
22.02
22.28
22.53
22.79
23.04
Power Output Tolerance (W)
0~+5
Temperature Coefficient of Isc
+0.04%°C
Temperature Coefficient of Voc
-0.24%/°C
Temperature Coefficient of Pmax
-0.26%/°C

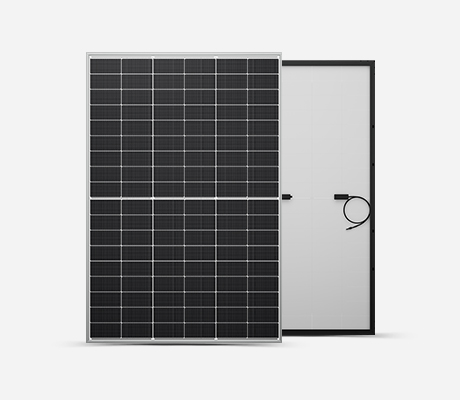

HiMAX5N   HJT 430-450W
Power Range: 430-450W
No. of Cells: 108 cells
Dimension: 1722 × 1134 × 35mm
Weight: 21.0 kg
Modules per box: 31pcs
Modules per 40' container: 806pcs
