High Efficiency 10W Solar Panel Module 10 W 20W 30W Mono Pv Kit Made In China

Detail

Key attributes

Industry-specific attributes

Cell size

182mmx182mm

Type

PERC, Customized solar panel

Panel Efficiency

20.5%

Warranty

25Years

Other attributes

Place of Origin

Jiangsu, China

Panel Dimensions

935 * 765 * 30 mm

Brand Name

Sunpal

Model Number

SP130M-32

Type

Customized Solar Panel

Module

130W Solar Panel Module

Solar Cells

Monocrystalline

Cell Orientation

32 cells (4 * 8)

Weight

7.7KG

Glass

3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass

Backsheet

White

Frame

Silver / Black Anodized Aluminium Alloy

Junction Box

IP 68 rated

Cables

4.0mm2

Packaging and delivery

Packaging Details

pallet

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 1000	> 1000
Lead time (days)	7	To be negotiated

Electrical Characteristics:

Cell Orientation	32（4*8）
Glass	Single glass
Weight	7.77kg±3%
Power Output Tolerance	0~+5W
Dimension	93576530mm
Max. System Voltage	DC1500V

Model Number	SP40M-32	SP45M-32	SP50M-32	SP60M-32	SP70M-32	SP80M-32
Testing Condition	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	40	45	50	60	70	80
Open Circuit Voltage (Voc/V)	21.28	21.83	21.42	22.06	21.51	22.06
Short Circuit Current (Isc/A)	2.34	2.51	2.91	3.25	4.06	4.33
Voltage at Maximum Power (Vmp/V)	18.24	18.85	18.37	19.37	18.43	19.37
Current at Maximum Power (Imp/A)	2.19	2.39	2.72	3.10	3.8	4.13
Module Weight(Kg)	2.8	2.8	3.43	3.43	4.53	4.53

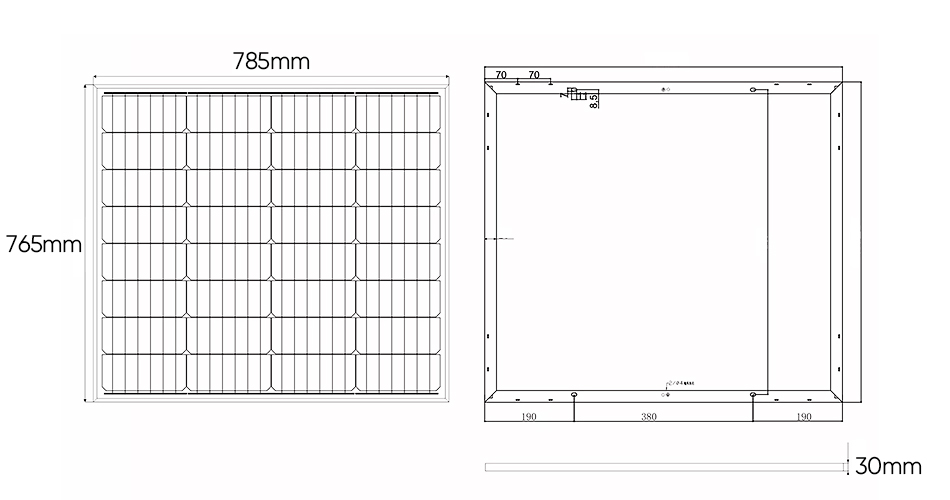

Module Dimension (mm)	65539530	65539530	80039530	80039530	54576530	54576530

Model Number	SP90M-32	SP95M-32	SP100M-32	SP110M-32	SP120M-32	SP130M-32
Testing Condition	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	90	95	100	110	120	130
Open Circuit Voltage (Voc/V)	21.8	22.06	21.42	21.72	22.08	21.71
Short Circuit Current (Isc/A)	5.05	5.14	5.82	6.24	6.18	7.39
Voltage at Maximum Power (Vmp/V)	18.79	19.37	18.37	18.63	19.41	18.6
Current at Maximum Power (Imp/A)	4.79	4.9	5.44	5.9	6.18	6.99
Module Weight(Kg)	5.32	5.32	6.52	6.52	6.52	7.77
Module Dimension (mm)	64076530	64076530	78576530	78576530	78576530	93576530
