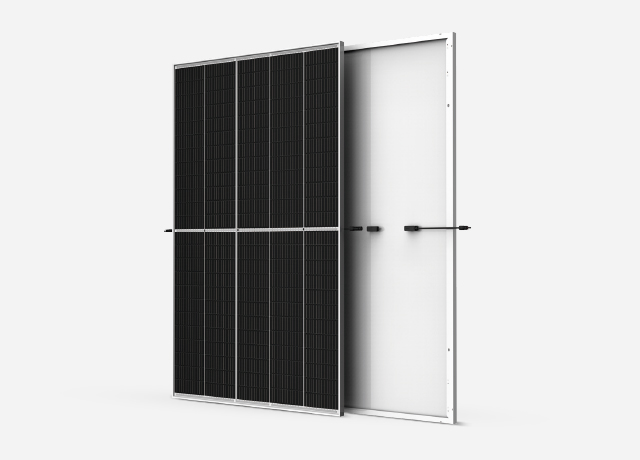

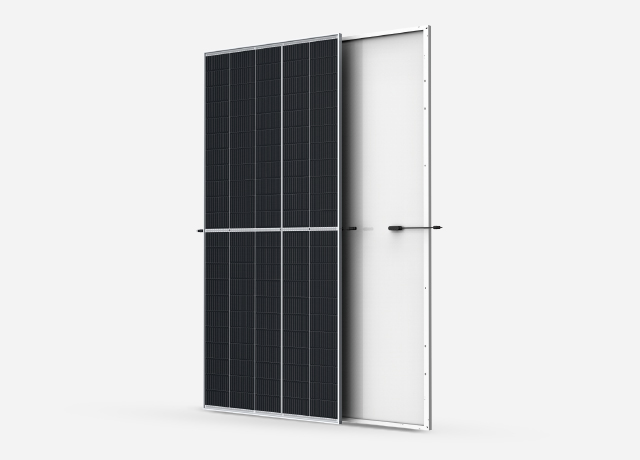

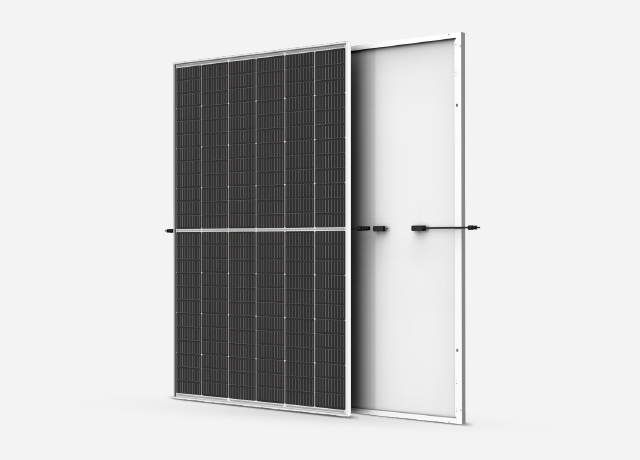

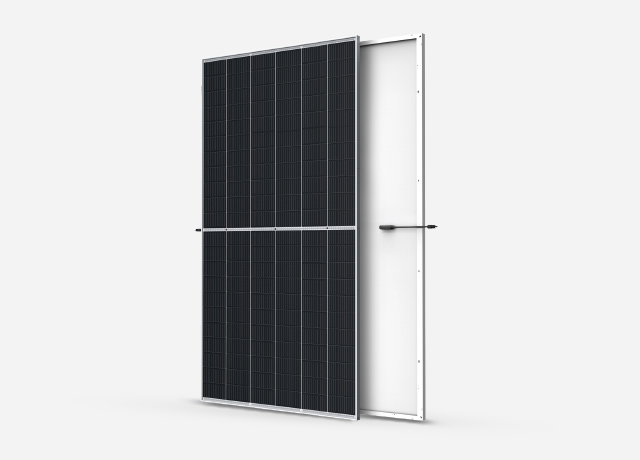

Trina Bifacial Solar Panels Vertex S TSM 450W 500W 550W 600W 670W 144 Cells Half Cut Mono PV Module

Detail

Key attributes

Industry-specific attributes

Cell size

210mmx210mm

Type

PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, TOPCON

Panel Efficiency

22%

Warranty

25Years

Other attributes

Place of Origin

Anhui, China

Panel Dimensions

2384 x 1303 x 30mm

Brand Name

Trina

Model Number

Vertex

Module

Trina Solar Panel

Front Side Glass

High transparency solar glass 2.0mm

Back Side Glass

High transparency solar glass 2.0mm

Weight

33.6kg

Frame

Silver / Black Anodized Aluminium Alloy

Glass

3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass

Wind/Snow Load

2400Pa/5400Pa

Junction Box

IP68 Rated, 3 Diodes

Cables

4.0mm2, Portrait: 300mm / Landscape: 1200mm

Connector

MC Compatible

Packaging and delivery

Packaging Details

carton with pallet

Port

shanghai port

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 100000	> 100000
Lead time (days)	7	To be negotiated

Vertex Series

Electrical Characteristics
Maximum Power（Pmax/W）	415	420	425	430	435
Voltage at Maximum Power(Vmp/V)	41.7	42.0	42.2	42.3	42.5
Current at Maximum Power(Imp/A)	9.94	10.01	10.08	10.17	10.24
Open Circuit Voltage（Voc/V)	50.0	50.1	50.2	50.3	50.4
Short Circuit Current(lsc/aA)	10.55	10.58	10.61	10.64	10.67
Module Efficiency(%)	20.8	21.0	21.3	21.5	21.8
