Cheap Solar Panels China Trade 355W 365W 375W 385W Panel Price Monocrystalline Cheapest Half-Cut Pho

Detail

Key attributes

Industry-specific attributes

Cell size

166mmx166mm

Type

PERC, Half Cell, All Black

Panel Efficiency

21.14%

Warranty

10Years

Other attributes

Place of Origin

Jiangsu, China

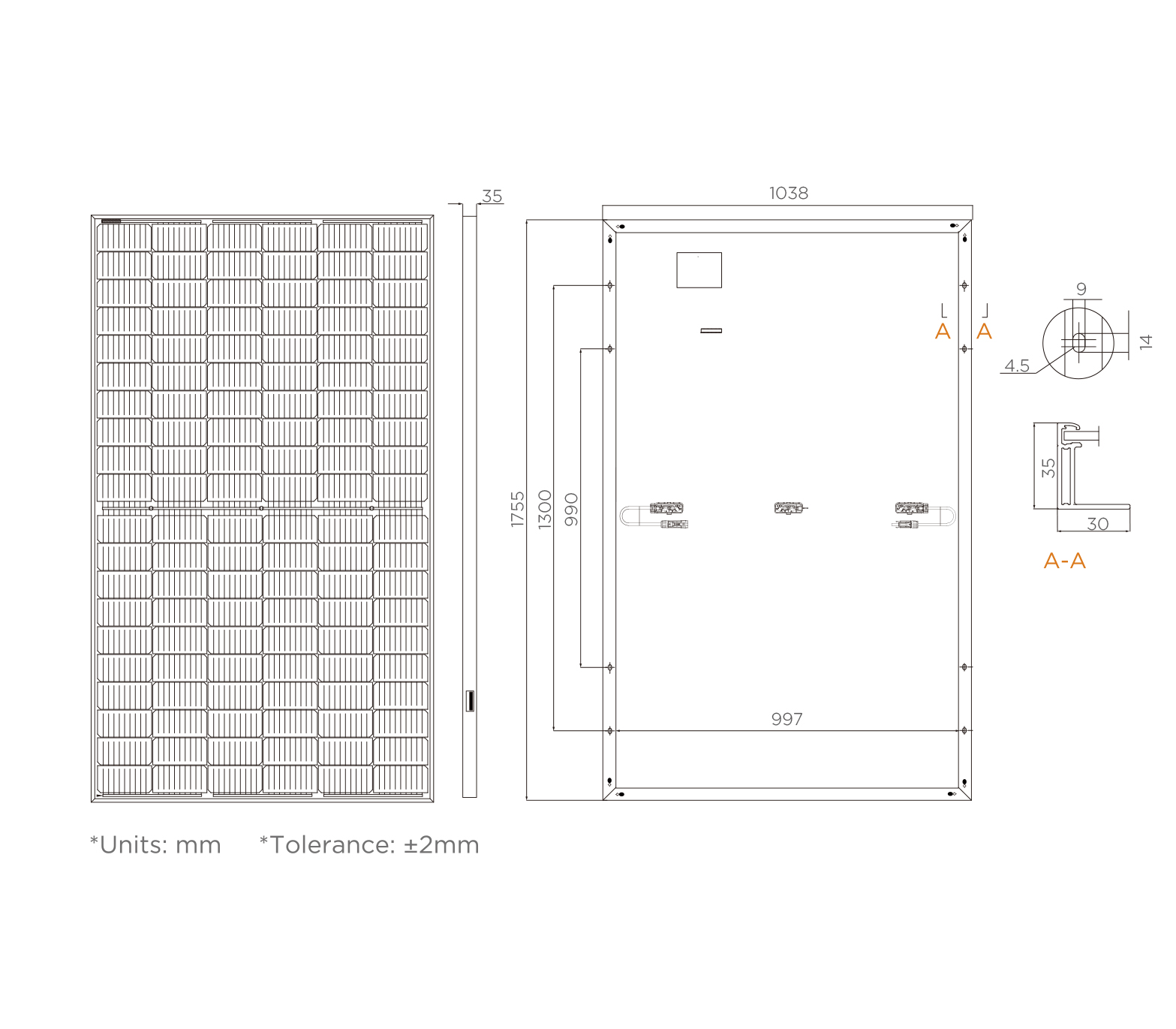

Panel Dimensions

1755x1038x35mm

Brand Name

Sunpal

Model Number

SP385M-60HB

Cell Type

All black Half Cell

Packing

780pcs per 40'ft Container

Material

Monocrystalline Silicon Solar Cells

Type

Half Cell Solar Panel

Frame

Anodized Aluminium Alloy

Application

Commercia

Backsheet

White

Keyword

Monocrystalin Solar Panel

Junction Box

IP 68 rated

OEM Order

Provide Custom Products

Packaging and delivery

Packaging Details

carton with pallet

Supply Ability

1000 Piece/Pieces per Day

Lead time

Quantity (watts)	1 - 100000	> 100000
Lead time (days)	7	To be negotiated

Customization

Customized logo

Min. order: 400000

Customized packaging

Min. order: 400000

Graphic customization

Min. order: 400000

Product Description

Electrical Characteristics:

Cell Orientation	120（6*20）
Glass	3.2mm coated tempered galss
Frame	Anodized aluminum alloy frame
Weight	19.5kg + 3%
Power Output Tolerance	0~+5W
Max. System Voltage	DC15000V(IEC)

Model Number	SP360M-60HB		SP365M-60HB		SP370M-60HB
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	360	273	365	277	370	281
Open Circuit Voltage (Voc/V)	40.7	38.5	41	38.8	41.3	39.1
Short Circuit Current (Isc/A)	11.23	9.05	11.3	9.11	11.37	9.17
Voltage at Maximum Power (Vmp/V)	33.7	31.9	34	32.2	34.3	32.5
Current at Maximum Power (Imp/A)	10.69	8.56	10.74	8.61	10.79	8.65
Module Efficiency(%)	19.77		20.04		20.32
Temperature Coefficient of Isc	+0.048%/°C
Temperature Coefficient of Voc	-0.270%/°C
Temperature Coefficient of Pmax	-0.35%/°C

Model Number	SP375M-60HB		SP380M-60HB		SP385M-60HB
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	375	285	380	289	385	294
Open Circuit Voltage (Voc/V)	41.6	39.4	41.9	39.7	42.2	40.0
Short Circuit Current (Isc/A)	11.44	9.23	11.51	9.29	11.58	9.35
Voltage at Maximum Power (Vmp/V)	34.6	32.8	34.9	33.1	35.2	33.4
Current at Maximum Power (Imp/A)	10.84	8.69	10.89	8.74	10.94
Module Efficiency(%)	20.59		20.86		21.13
Temperature Coefficient of Isc	+0.048%/°C
Temperature Coefficient of Voc	-0.270%/°C
Temperature Coefficient of Pmax	-0.35%/°C
